Rotary Dual Cleaners
Kongskilde > Grain Cleaning > Rotary Dual Cleaners

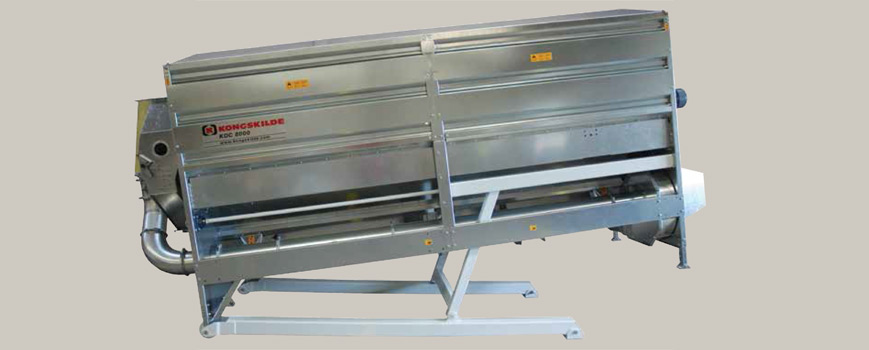

About Kongskilde Rotary Dual Cleaners
The KDC 4000 and KDC 8000 are dual cleaners, with combined screen and aspirator functions. The screens sort by means of size, in the aspirator unit light impurities and dust are removed by means of air.
Technical Specifications
| KDC 4000 | KDC 8000 | |
| Drum drive | ||
| Screen drum (RPM) | 21.9 RPM | 23 RPM |
| Motor size (kW) | 1.5 kW | 2.2 kW |
| Blower for aspirator | ||
| Blower (RPM) | 2,900 RPM | 2,900 RPM |
| Motor size (kW) | 4 kW | 4 kW |
| Auger drive | ||
| Motor (RPM) | 1,380 RPM | 950 RPM |
| Motor size (kw) | 0.75 kW | 1.1 kW |
| Panel | ||
| Power supply | 3x 400V, 50Hz 13,4A | 3x 400V, 50Hz 15A |
| Complete machine | ||
| Weight (without screens) | 890 Kg | 1425 Kg |
